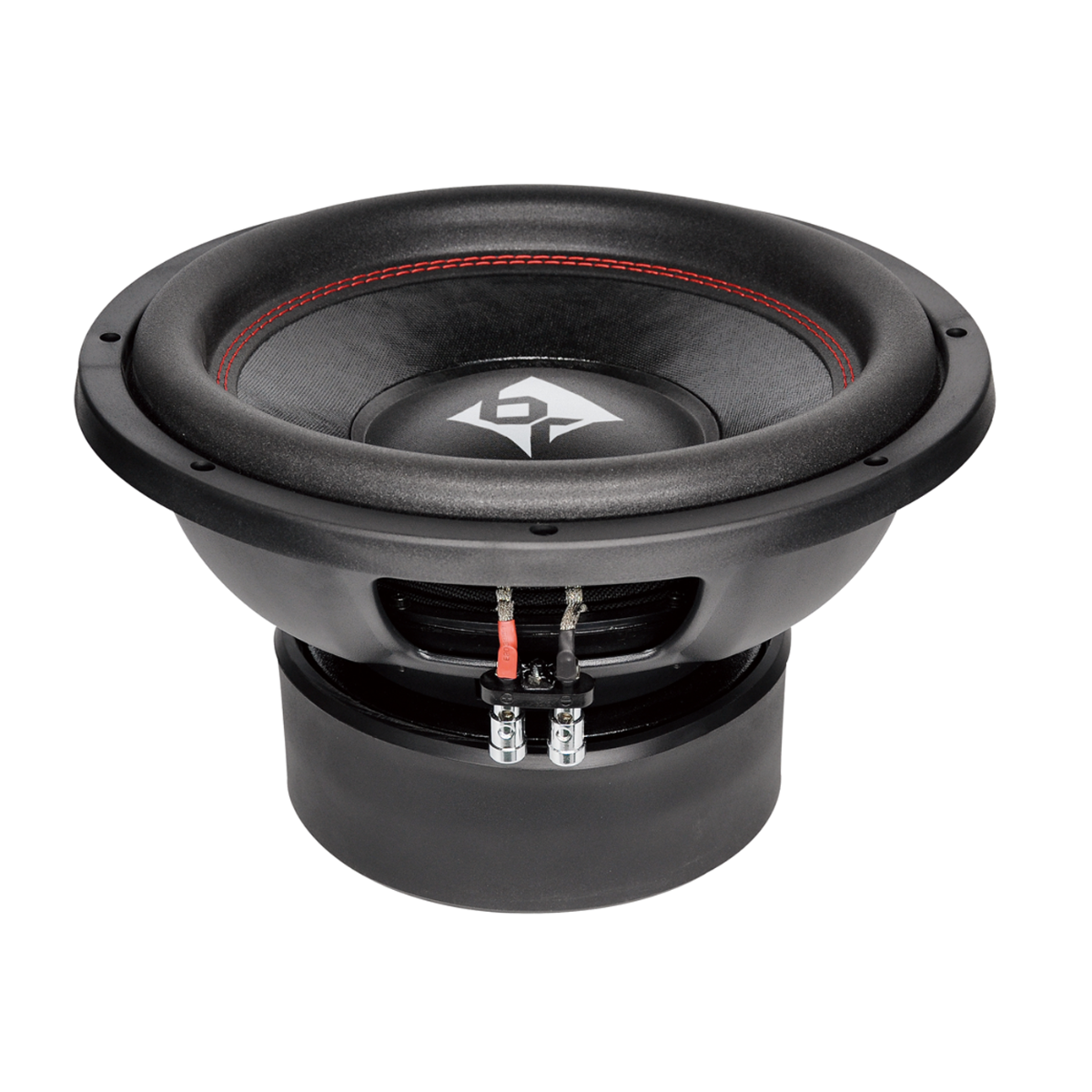

Bass Rockers BRB10v3 10” Competition SPL Subwoofer, 1200W RMS/2400W Max, Dual 4-Ohm DVC, 3” 4-Layer CCAW Coil, Direct Cooling T-Yoke, Foam Surround, Nomex Spider, 10AWG Terminals

Bass Rockers BRB10v3 10” Competition SPL Subwoofer, 1200W RMS/2400W Max, Dual 4-Ohm DVC, 3” 4-Layer CCAW Coil, Direct Cooling T-Yoke, Foam Surround, Nomex Spider, 10AWG Terminals

$135.00
SKU

Notify me when back in stock

Built for serious bass and high-output systems, the Bass Rockers BRB10 v3 D4 is a heavy-duty 10-inch competition subwoofer designed to handle power, stay cool, and play loud. With a 1200W RMS rating (2400W peak), a large 3” 4-layer high-temperature CCAW voice coil, and a direct cooling T-yoke design, this sub is made for hard daily use and SPL-style builds. The rigid black die-cast basket, reinforced paper cone, foam surround, and double black Nomex spider (mirrored layout) deliver strong control and stability even at high excursion. Finished with 10AWG copper push terminals, it’s ready for a clean, high-current install.

Key Features

  • Competition/SPL-ready 10” subwoofer

  • 1200W RMS / 2400W Peak power handling

  • Dual 4-Ohm DVC (D4) for flexible wiring

  • 3” 4-Layer High-Temp CCAW Voice Coil

  • Direct Cooling T-Yoke with black anodized treatment

  • Black die-cast basket (heavy-duty frame)

  • Reinforced paper cone + paper dust cap

  • Foam surround for controlled movement

  • Double black Nomex spider (mirrored layout)

  • 10AWG copper push terminals for secure, high-current wiring

Specifications

  • Brand / Model: Bass Rockers BRB10 v3 D4

  • Speaker Type: Non-Enclosed Subwoofer

  • Size: 10"

  • Driver Design: 1-Way

  • Impedance: Dual 4 Ohm (DVC)

  • RMS Power: 1200W

  • Peak Power: 2400W

  • Frequency Response: 35–200Hz

  • Color: Black

  • Material Type: Aluminum (die-cast basket/frame)

  • Warranty: Limited 1 Year (Manufacturer)

T/S Parameters (As Provided)

  • Voice Coil Diameter: 3"

  • Re: 6 Ohm

  • Fs: 40.123 Hz

  • Qms: 5.011

  • Qes: 0.925

  • Qts: 0.681

  • Vas: 22.184 L

  • Mms: 266.834 g

  • Xmax: 17.5 mm

  • SPL: 88 dB

  • BL: 21.572 Tesla·m

Enclosure Recommendations (As Provided)

  • Sealed Box: VB(L) 52 | FB(Hz) 47.85

  • Ported Box: VB(L) 50 | Tuning 39 Hz

Mounting & Fitment

  • Mounting Depth: 16.5cm / 165mm / 6.50"

  • Cut Out Size: 28.5cm / 285mm / 11.22"

Wiring Options (Dual 4-Ohm DVC)

  • Parallel wiring: 2 Ohm final load

  • Series wiring: 8 Ohm final load
    (Choose based on your amplifier stability.)

What’s Included

  • 1 × Bass Rockers BRB10 v3 D4 10" Subwoofer
