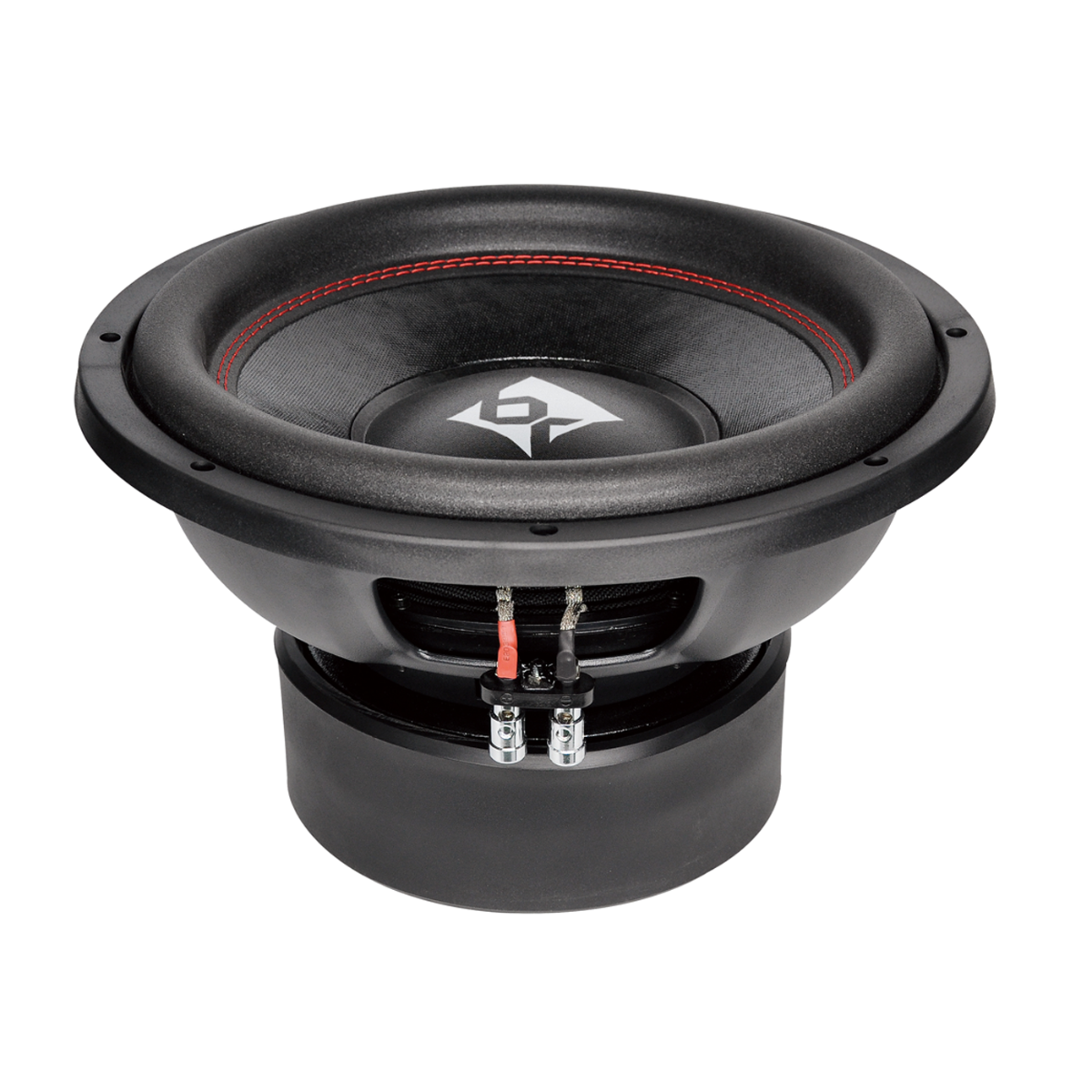

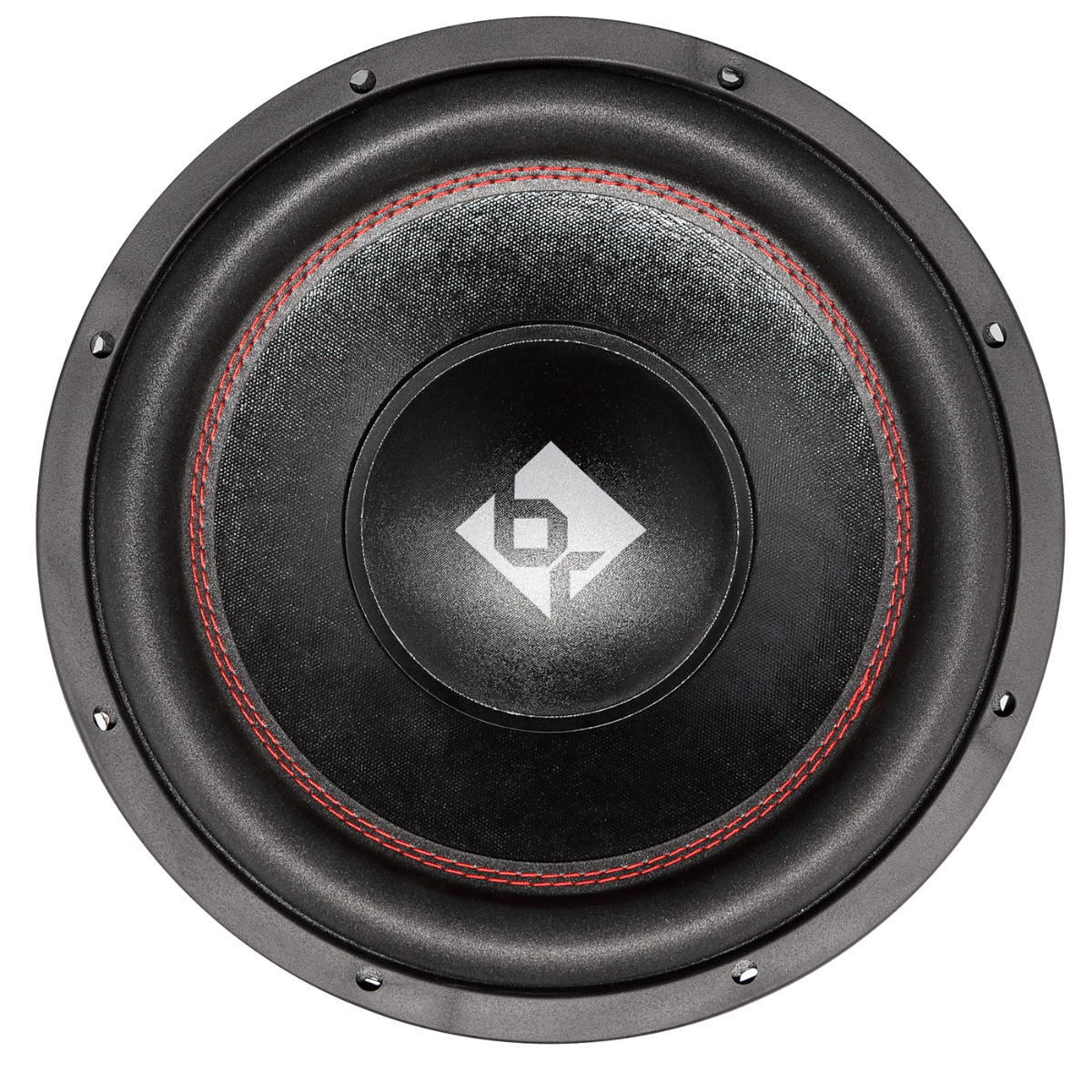

Bass Rockers BRB15V3 D4 15” Competition SPL Subwoofer, 1300W RMS/2600W Peak, Dual 4-Ohm DVC, 3” 4-Layer CCAW Coil, Die-Cast Aluminum Basket

Bass Rockers BRB15V3 D4 15” Competition SPL Subwoofer, 1300W RMS/2600W Peak, Dual 4-Ohm DVC, 3” 4-Layer CCAW Coil, Die-Cast Aluminum Basket

Sale
$155.00
$131.75
SKU

Notify me when back in stock

Built for serious bass and high-output systems, the Bass Rockers BRB15 v3 D4 is a heavy-duty 15-inch competition subwoofer designed to take power, stay cool, and hit hard. Featuring a rigid black die-cast aluminum basket, reinforced paper cone, foam surround, and a 3” 4-layer high-temperature CCAW voice coil, this sub is made for SPL-style builds and demanding daily use. A direct cooling T-yoke with black anodized treatment helps improve heat control during hard play, while the double black Nomex spider (mirrored layout) supports stability and controlled movement. With Dual 4-Ohm DVC wiring, 10AWG copper push terminals, and a strong motor (listed 275oz magnet), the BRB15 v3 is ready for big bass setups.

Key Features

  • 15" Competition / SPL subwoofer (non-enclosed)

  • 1300W RMS / 2600W Peak power handling

  • Dual 4-Ohm DVC (Dual Voice Coil) for flexible wiring

  • 3" 4-layer high-temp CCAW voice coil

  • Direct cooling T-yoke with black anodized treatment

  • Black die-cast aluminum basket (heavy-duty frame)

  • Reinforced paper cone + paper dust cap

  • Foam surrounds for controlled excursion

  • Double black Nomex spider (mirrored layout)

  • 10AWG copper push terminal for high-current wiring

Specifications

  • Brand / Model: Bass Rockers BRB15 v3 D4

  • Size: 15"

  • Driver Design: 1-Way

  • Speaker Type: Non-Enclosed Subwoofer

  • Voice Coils: Dual (2 coils)

  • Impedance: Dual 4 Ohm (D4)

  • RMS Power: 1300W

  • Peak Power: 2600W

  • Frequency Response: 35–200Hz

  • Sensitivity: 88 dB

  • Magnet Size/Weight: 275 oz

  • Material Type: Aluminum (die-cast basket/frame)

  • Color: Black

  • Shape: Round

  • Warranty: Limited 1 Year (Manufacturer)

T/S Parameters (As Provided)

  • Re: 6 Ohm

  • Fs: 40.123 Hz

  • Qms: 5.011

  • Qes: 0.925

  • Qts: 0.681

  • Vas: 22.184 L

  • Mms: 266.834 g

  • Xmax: 17.5 mm

  • SPL: 88 dB

  • BL: 21.572 Tesla·m

Enclosure Recommendations (As Provided)

  • Sealed Box: VB(L): 52 | FB(Hz): 47.85

  • Ported Box: VB(L): 50 | Tuning: 39 Hz
    (Use these as starting points—final performance depends on box design, port area, and vehicle.)

Wiring Options (Dual 4-Ohm DVC)

  • Parallel wiring: 2 Ohm final load

  • Series wiring: 8 Ohm final load

What’s Included

  • 1 × Bass Rockers BRB15 v3 D4 15" Subwoofer
