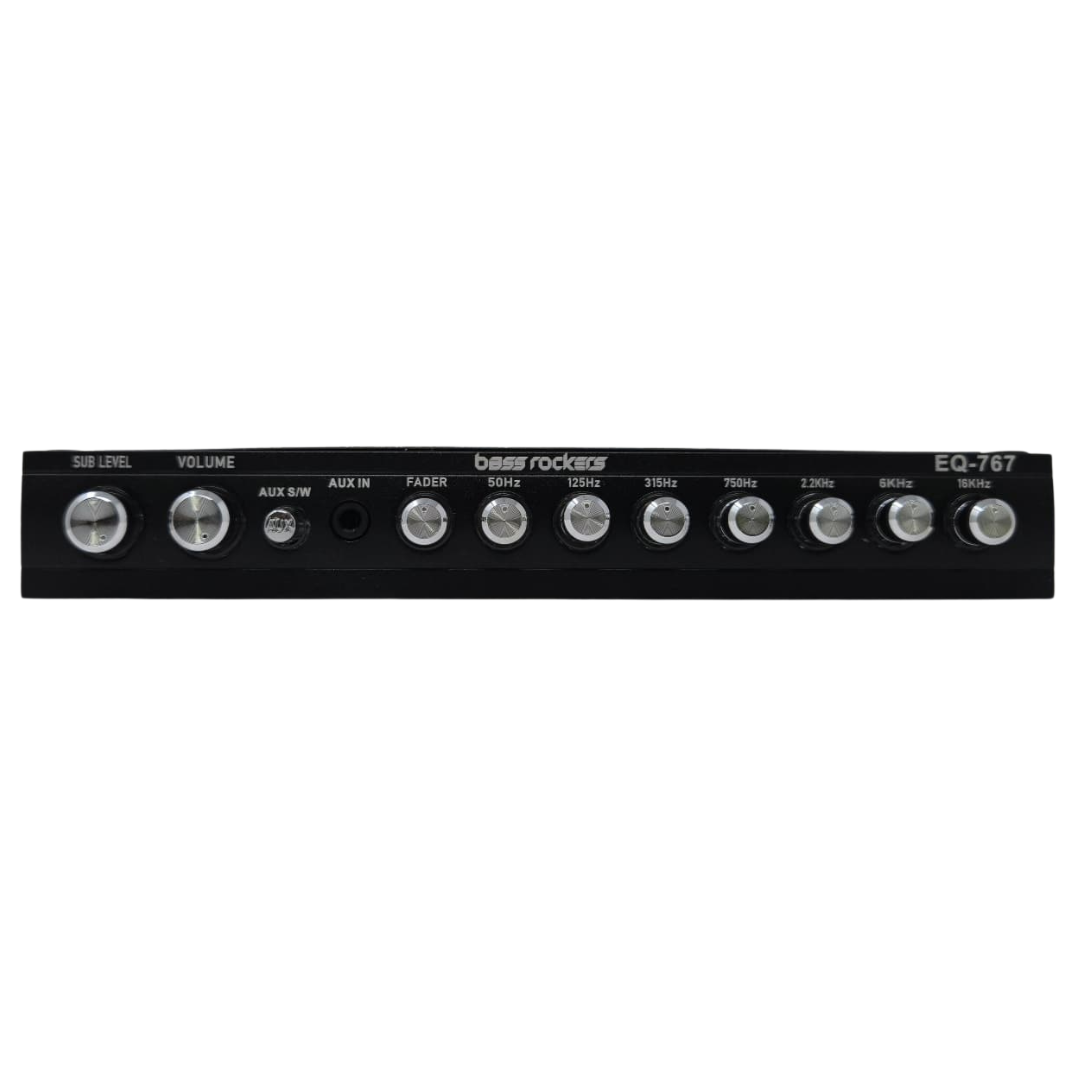

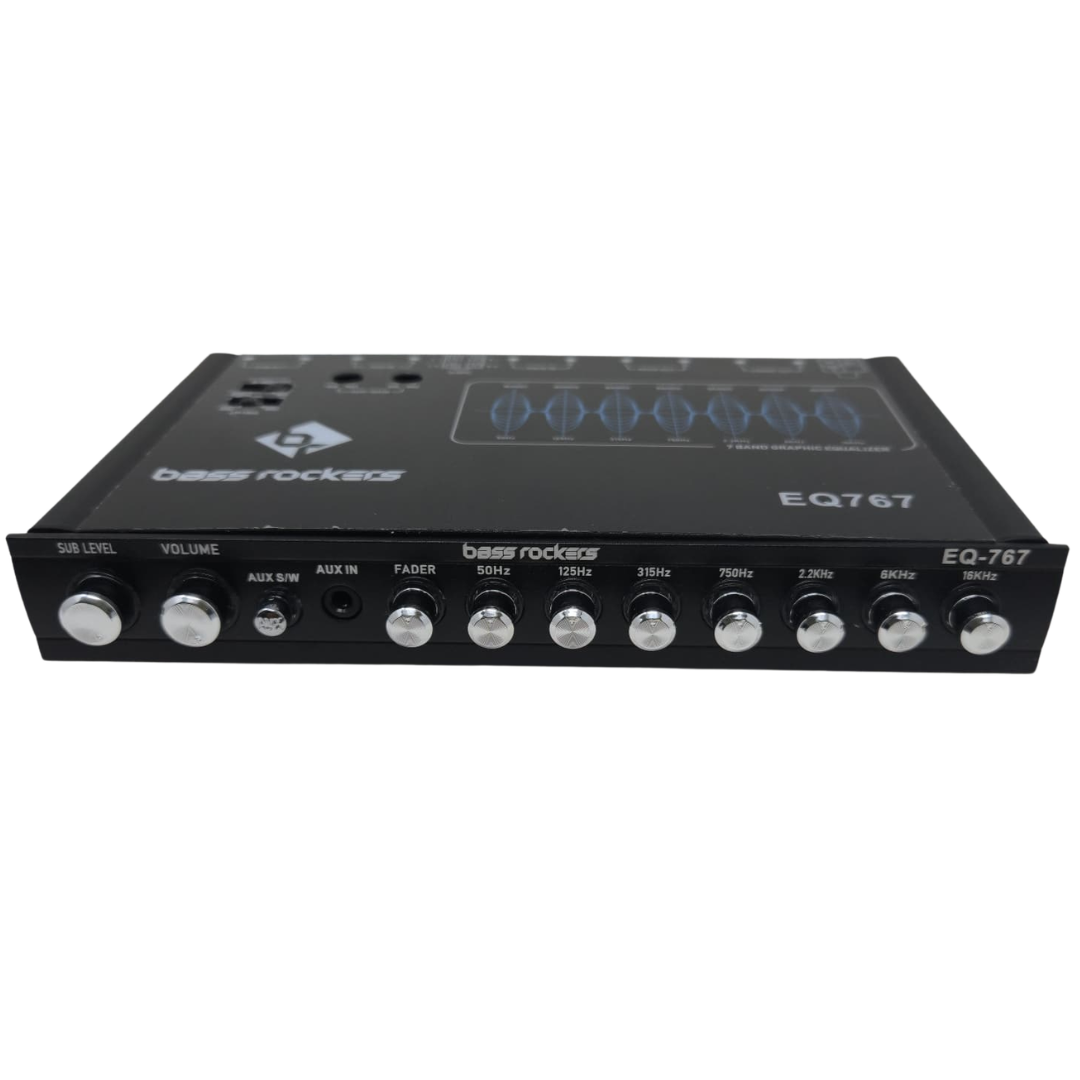

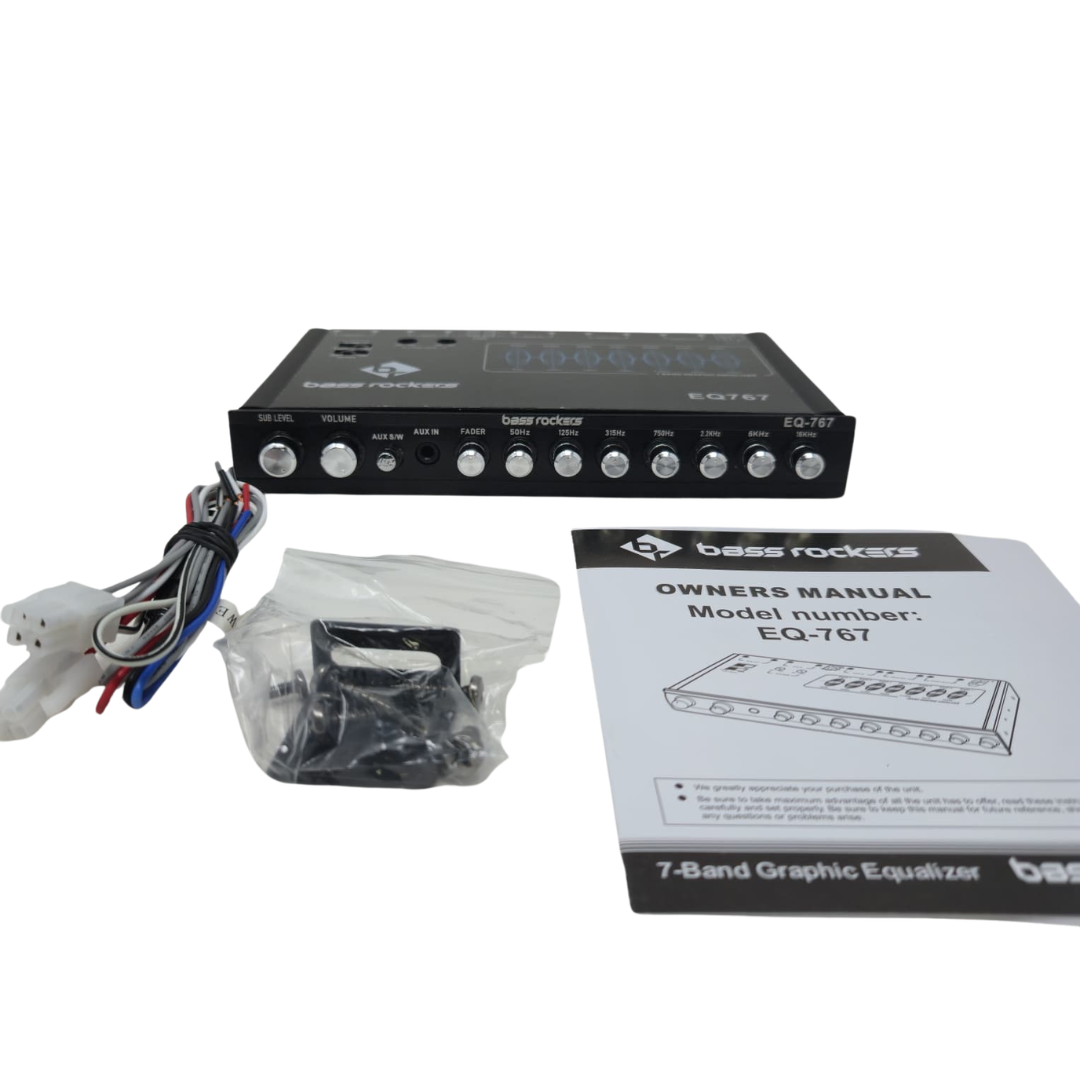

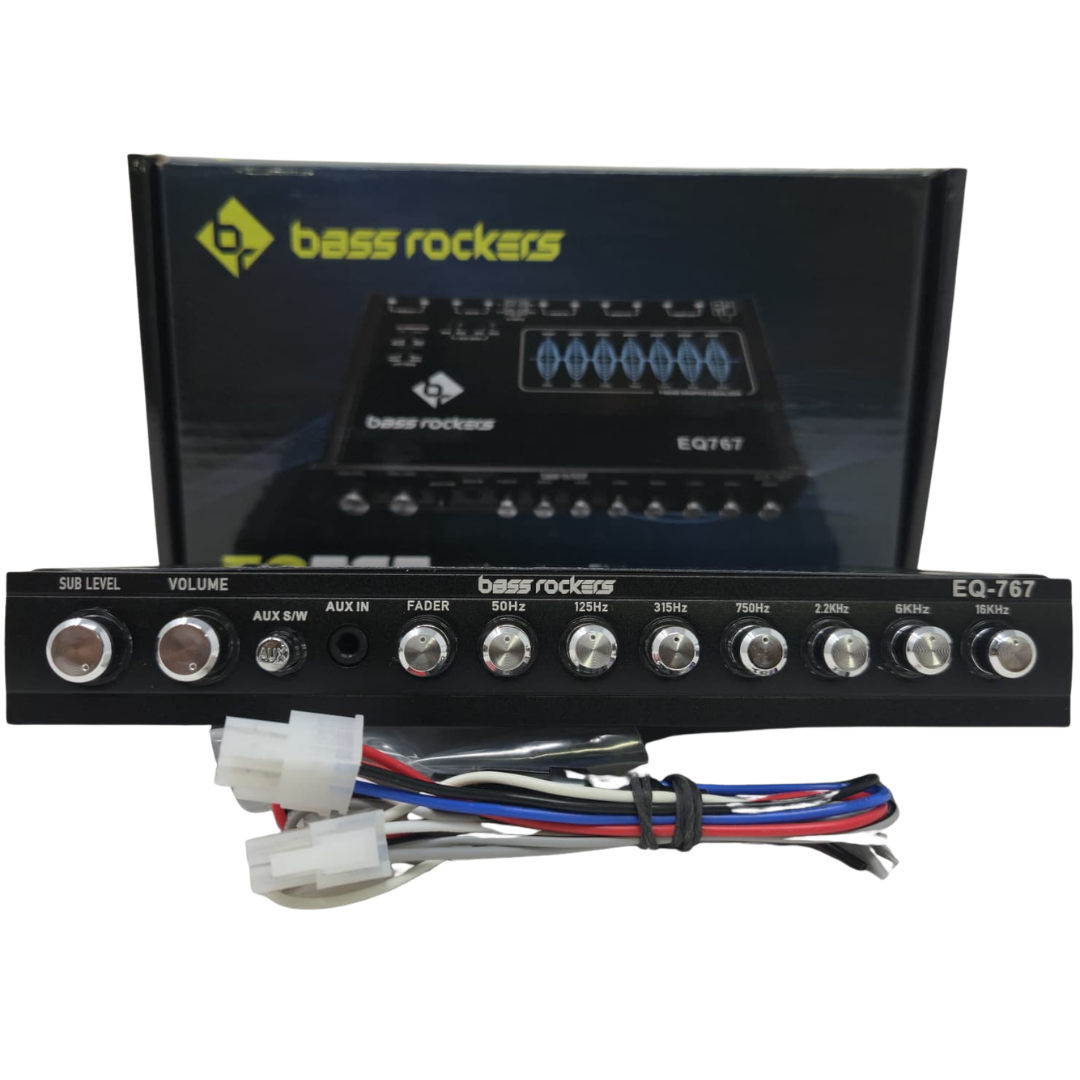

EQ767 7-Band Parametric Equalizer for Car Audio, High Voltage 7V Output, Hi-Lo Input, AUX Input, Sub Bass Control, Red/Blue LED, 25Hz–50kHz

EQ767 7-Band Parametric Equalizer for Car Audio, High Voltage 7V Output, Hi-Lo Input, AUX Input, Sub Bass Control, Red/Blue LED, 25Hz–50kHz

$65.00
SKU EQ_767

Notify me when back in stock

Take greater control of your car audio system with the Bass Rockers EQ767 7-Band Parametric Equalizer. Designed for custom car audio installations, the EQ767 gives you precise adjustment across seven important frequency bands while delivering a strong high-voltage signal to connected amplifiers.

Precise 7-Band Sound Adjustment

Fine-tune your system at:

  • 50Hz
  • 125Hz
  • 315Hz
  • 750Hz
  • 2.2kHz
  • 6kHz
  • 12kHz

These controls allow you to shape low bass, midbass, vocals, instruments, and high-frequency detail for a cleaner and more balanced listening experience.

High-Voltage 7V Output

The EQ767 provides a high-voltage output of up to 7V, helping deliver a stronger signal from the equalizer to your external amplifiers. This makes it suitable for car audio systems using amplifiers, speakers, and subwoofers.

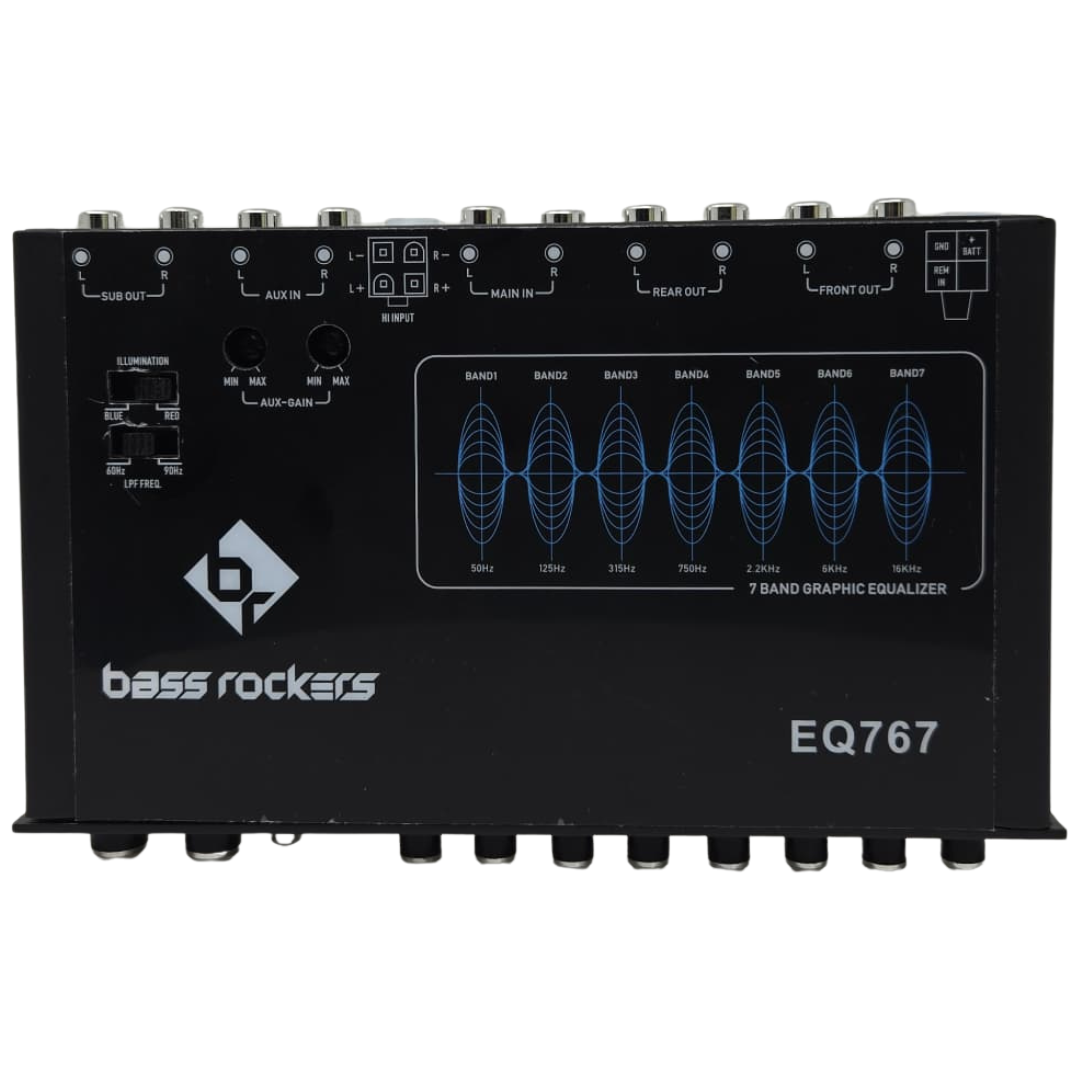

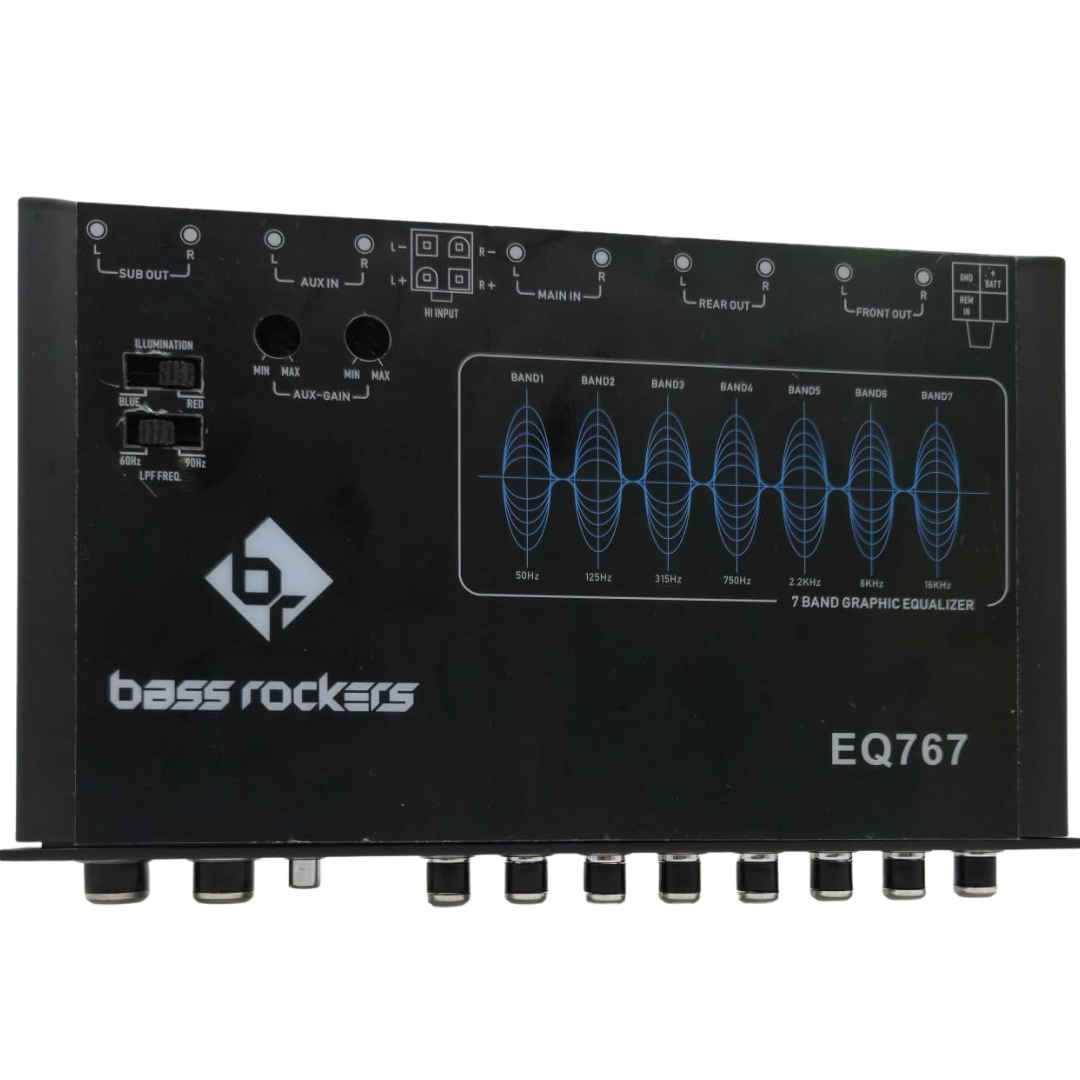

Flexible Input Options

Integrate the equalizer into factory or aftermarket audio systems using its multiple connection options:

  • Hi-Lo input
  • High-level input
  • AUX input

The AUX input also provides a convenient connection for an additional external audio source.

Dedicated Bass, Mid, Treble and Sub Bass Controls

Quickly adjust the overall sound using dedicated controls for:

  • Bass: ±10dB
  • Mid: ±10dB
  • Treble: ±10dB
  • Sub Bass: 43Hz / 60Hz

The separate sub-bass control makes it easier to shape low-frequency output according to your amplifier, subwoofer, and listening preferences.

Clean, Wide-Range Audio Performance

With a frequency response of 25Hz–50kHz, a signal-to-noise ratio greater than 96dB, and 0.01% total harmonic distortion at 1V output, the EQ767 is designed for detailed sound with low unwanted noise and distortion when correctly installed.

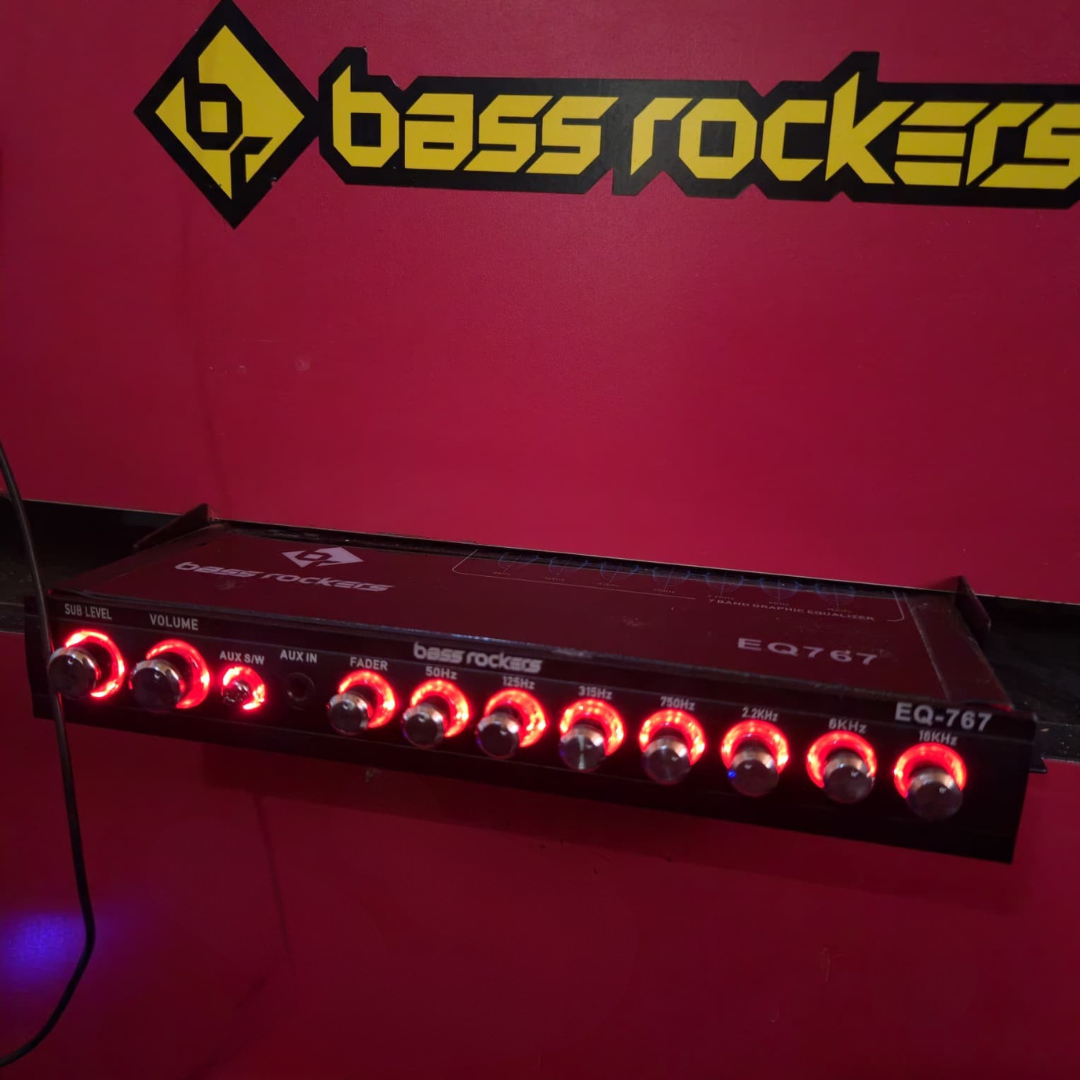

Red and Blue LED Illumination

Red and blue LED lighting around the control knobs gives the equalizer a distinctive custom appearance that complements upgraded dashboards and car audio installations.

Key Specifications

  • Model: EQ767
  • Equalizer Type: 7-Band Parametric Equalizer
  • Frequency Bands: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz and 12kHz
  • Maximum Output: 7V
  • Frequency Response: 25Hz–50kHz
  • Signal-to-Noise Ratio: Greater than 96dB
  • Total Harmonic Distortion: 0.01% at 1V output
  • Bass Control: ±10dB
  • Mid Control: ±10dB
  • Treble Control: ±10dB
  • Sub Bass Selection: 43Hz / 60Hz
  • Inputs: Hi-Lo, high-level and AUX
  • Illumination: Red and blue LED
  • Application: Wired car audio systems with factory or aftermarket radios and external amplifiers
